Comen C26 Fetal Monitor Touch Screen 16.11

USED GOOD CONDITION

►Quick Detail:

This product is Comen C26 Fetal Monitor Touch Screen 16.11 USED GOOD CONDITION, although it is second-hand, it comes with a 90 day warranty. Before shipping, please measure the length and width of your screen so that you can better determine the size of the touch screen.
The Comen C26 Fetal Monitor Touch Screen 16.11 is one of the most popular LCD panels in industrial control applications.

Project unit specifications
Screen size [inches] 12.1
Original resolution 800 X 600
Effective area [mm] 246.0 (height) X 184.5 (vertical)
Dimensions [mm] 265.0 (width) X 205.0 (height) x 9.5 (depth)
Bolt hole size [mm] 217.8 X 197.8
Input voltage VDD [V] 3.3V
Screen harness FIX-30S-1LVDS-B2122
Electrical interface LVDS (8-bit), (P2, 8-bit=OP/NC, 6-bit=GND)
White brightness [cd/m2] 330
Contrast ratio 800
Part of the backlight connector screen cable, P27/P28
Backlight inverter LED, built-in, 12V
Response time, rising in milliseconds N/A
Response time, decreased by 30 milliseconds
Perspective - Horizontal Degree 80
Perspective - Verticality 80

►NOTES:

The glass surface of the touch screen is made of ITO with horizontal and vertical electrodes. The intersection of the two sets of electrodes will form a capacitor, which is the two poles of the capacitor formed by these two sets of electrodes. When a finger touches the capacitive screen, it affects the coupling between the two electrodes near the touch point, thereby changing the capacitance between these two electrodes. When detecting the mutual capacitance, the transverse electrodes emit excitation signals sequentially, and all longitudinal electrodes receive signals simultaneously.

If the touch screen does not respond no matter what is pressed or the fetal monitor screen appears white, long pressing the power button and restarting the monitor device can solve most cases. If this operation still does not solve the problem of touch screen malfunction, then it is necessary to replace the touch screen.
​

►Key features:

► Company situation:

The company has been professionally operating various brands of original medical monitoring instruments since 2015. The company has many professional senior engineers and has sufficient ability to undertake various medical equipment maintenance work. Covering motherboards, sensors, probes, modules, connectors, shells, etc. for various medical monitoring equipment.

►About delivery:

We default to express delivery by DHL,Fedex, We will contact you as soon as possible when sending express delivery. If you have any questions after receiving the express delivery, please feel free to contact us at any time.

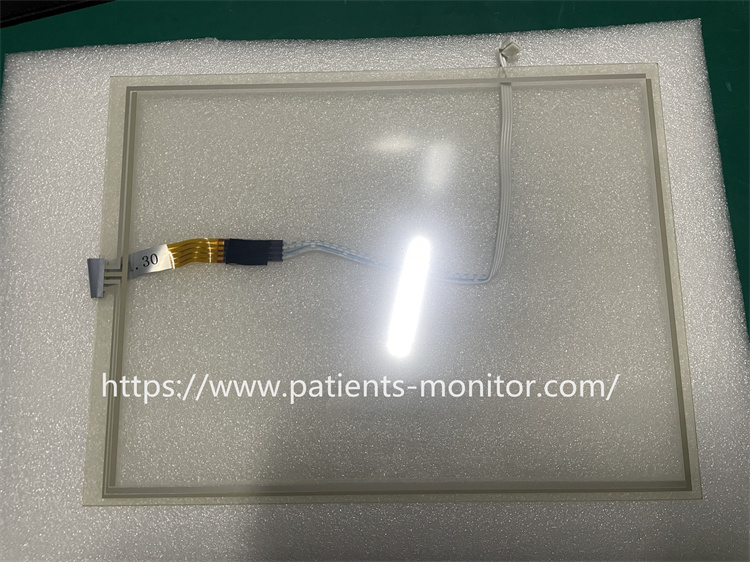

Comen C26 Fetal Monitor Touch Screen 16.11 USED GOOD CONDITION Images
