Drager O2 Sensor OxyTrace VE original new MX01049
► Drager O2 Sensor OxyTrace VE original new MX01049 range
OxyTrace Sensor range includes three sensors for different applications: OxyTrace A for use with Zeus, OxyTrace VE for use with the Savina
series and OxyTrace Incu for use with Caleo. The sensor is manufactured with minimal components and comes in an 'XS' format with a diameter
of 20 mm and a height of 34 mm. The OxyTrace sensor has a service life of more than 30 months and has proven its technical stability since its
first introduction to the market in 1999.
Design and operation
The OxyTrace sensor is a non-depletable electrochemical oxygen sensor that operates on the principle of an oxygen pump. The electrolytes
include measuring electrodes, reference electrodes and counter electrodes. These sensors operate electronically with a potentiostatic switch and
oxygen is reduced at the measuring electrode:
O2 + 4H+ +4e- → 2H2O
At the same time, water is electrolyzed at the counter electrode:
2H2O → O2 + 4H+ +4e
In general, oxygen reaching the measuring side of the sensor returns to the counter electrode side without replacing the sensor. Depending on
the gas flow, a current proportional to the O2 concentration of the monitored gas is generated.
► About Drager O2 sensors
Oxygen sensors play a crucial role in the monitoring of mechanically ventilated patients by continuously measuring and monitoring the oxygen
content of the inhaled gases. The importance of this parameter is reflected in the number of existing guidelines and recommendations. Dräger
oxygen sensors comply with the relevant national and international requirements. They have also been thoroughly tested and adjusted to work
perfectly with Dräger devices and systems. This is particularly important in order to minimize the risk to patients and users.
► Specification of Drager O2 Sensor OxyTrace VE original new MX01049
| Product Name | Drager O2 Sensor OxyTrace VE original new MX01049 |
| Brand | Drager |
| Part No | MX01049 |
| Measuring range | 0 to 100 Vol. % oxygen |
| T10-90 response time | 5 sec. |
| Operating temperature | 0 to 50 °C |
| Storage temperature | -20 to 50 °C |
| Dimensions | Diameter 20 mm, height 33.6 mm |

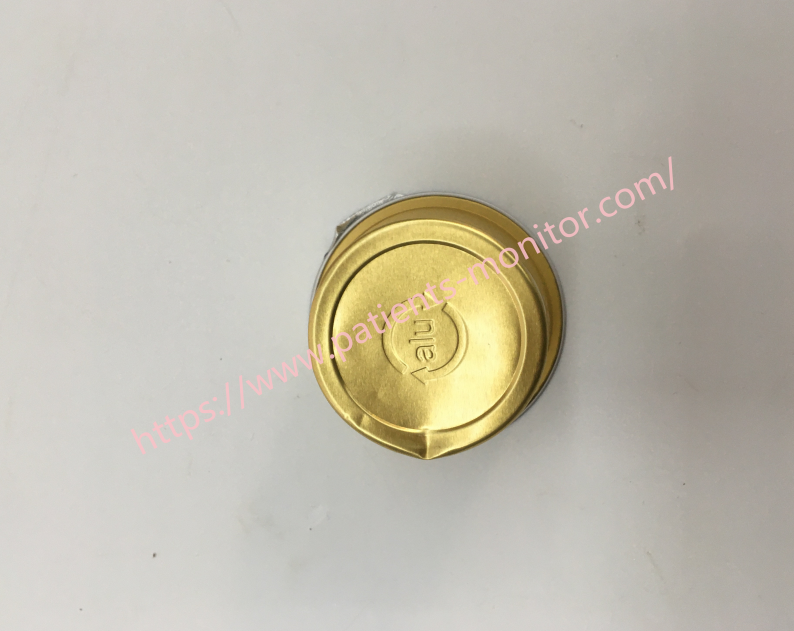

► Photo of Drager O2 Oxygen Sensor OxyTrace VE Original New MX01049 For Drager Ventilator
Below picture is Drager O2 Oxygen Sensor OxyTrace VE Original New MX01049 For Drager Ventilator .It's used for Drager ventilators .On
the oxygen sensor ,there are manufacture date ,storage temperature ,humidity ,atmospheric pressure etc .
If you would like to know more details ,feel free to contact us .Thanks
Thank you so much for your attention .If you're interested in Drager O2 Oxygen Sensor OxyTrace VE Original New MX01049 For Drager Ventilator ,feel free to contact us .Thank you .
