High Voltage Board for Nihon Kohden BSM-2301C
Nihon Kohden BSM-2301C Bedside Patient Monitor Display High Voltage Board FLCV-0801A9N91 RD-P-0579
► Brief Description
Nihon Kohden BSM-2301C Bedside Patient Monitor Display High Voltage Board FLCV-0801A9N91 RD-P-0579 - It is an essential component of the device. Its main function is to provide the necessary high voltage for the monitor's display screen. It can convert the input lower voltage into a high voltage suitable for the normal operation of the display screen, ensuring that the display screen can clearly and stably display various monitoring data, such as the patient's heart rate, blood pressure, blood oxygen and other information.
As a key component of the display system on the Nihon Kohden BSM-2301C Patient Monitor. If it fails, it is likely to cause abnormal display of the display screen, such as flickering, uneven brightness, and failure to display, which will affect the medical staff's reading of patient monitoring data and interfere with the normal progress of medical work.
► Specification
| Brand | Nihon Kohden |
| Product Category | Monitoring |
| Product Type | Spare Parts |
| Product Name | High Voltage Board |
| Application Site | Display |
| Machine Application | BSM-2301C |
| Part Number | FLCV-0801A9N91 RD-P-0579 |
| Condition | Used |
| Warranty | 90 Days |
| In Stock | Yes |
| Price | Accept Negotiation |
| Weight | < 0.5KG |
| Package | Carton |
| MOQ | One Piece |
| Payment Method | Western Union, Bank T/T, Paypal |
| Transportation | DHL, FedEx, UPS, TNT, EMS, By Air, etc. |
► Features
Nihon Kohden BSM-2301C Bedside Patient Monitor Display High Voltage Board FLCV-0801A9N91 RD-P-0579 As a component of professional medical equipment, this high voltage board should be designed and manufactured in accordance with strict medical equipment standards. Its circuit layout is reasonable and compact, and it can efficiently complete functions such as voltage conversion in a limited space. There will also be certain safeguards in terms of stability and safety to meet the needs of long-term stable work in medical environments such as hospitals.

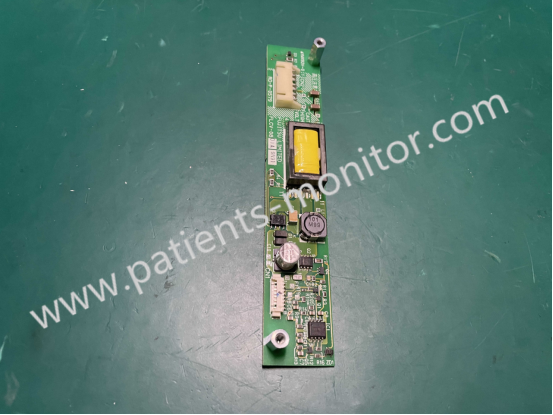

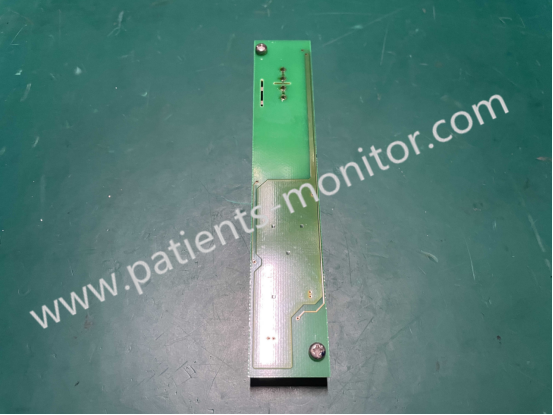

► Detailed Photos
► Working Principle
The main working principle of Nihon Kohden BSM-2301C Bedside Patient Monitor Display High Voltage Board FLCV-0801A9N91 RD-P-0579 is:
1. Input low voltage DC power supply;
2. Voltage conversion - the circuit inside the high voltage board is mainly composed of switching power supply circuit, step-up transformer, rectifier filter circuit, etc. The rectifier filter circuit rectifies and filters the boosted voltage and converts it into a stable DC high voltage to meet the working requirements of the display backlight tube;
3. Control signal adjustment - the motherboard will send a control signal to the high voltage board to control the working state of the high voltage board.
Thanks for your interest in Nihon Kohden BSM-2301C Bedside Patient Monitor Display High Voltage Board FLCV-0801A9N91 RD-P-0579, please feel free to contact me. Thank you for your time and wish you have a happy life.
