Nihon Kohden TEC-5602 Defibrillator Paddle Connect Cover
Nihon Kohden TEC-5602 Defibrillator Paddle Connect Cover Small Used Medical Equipment Spare Parts
► Brief Description
Nihon Kohden TEC-5602 Defibrillator Paddle Connect Cover
Its role in the Nihon Kohden TEC-5602 Defibrillator is to protect the Paddle connector, ensuring that the Paddle connection remains clean and safe when not in use. It can also effectively protect the performance and service life of the interface, because the interface is often prone to wear and tear due to long-term use, and may break. Using this Paddle Connect Cover can effectively prevent problems such as aging and wear.
► More Details
Nihon Kohden TEC-5602 Defibrillator Paddle Connect Cover, if you have questions or needs about this part, here are some suggestions:
1. Check the cover status: Make sure the Paddle Connect Cover is not damaged or missing. A damaged cover may expose the internal connector to dust or moisture, affecting the connection stability of the electrode pads and the defibrillation effect.
2. Correct installation: Confirm that the electrode pad connection cover is properly installed before and after use. The correct installation method is usually detailed in the device manual.
3. Cleaning and maintenance: Clean the cover and the area around it regularly to avoid accumulation of dirt. Use a mild disinfectant and a soft cloth and follow the manufacturer's cleaning guidelines.
4. Accessory replacement: If this cover is lost or damaged and needs to be replaced, please feel free to contact us for details about this product. Our Nihon Kohden TEC-5602 Defibrillator Paddle Connect Cover is original, but used with good condition. It is recommended that you use original accessories to maintain the best performance of the device.

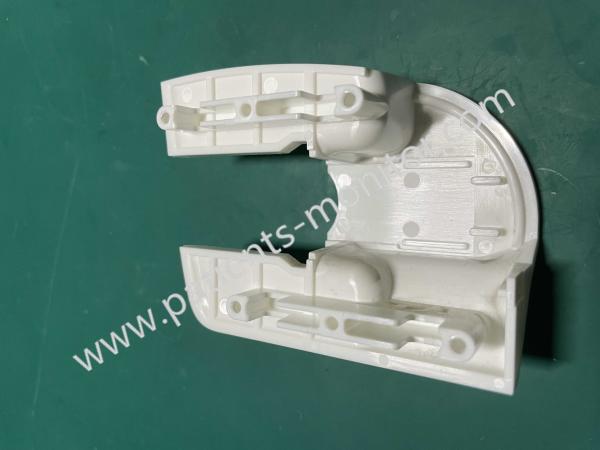

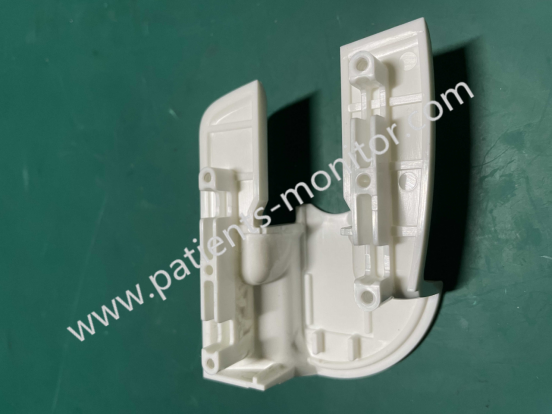

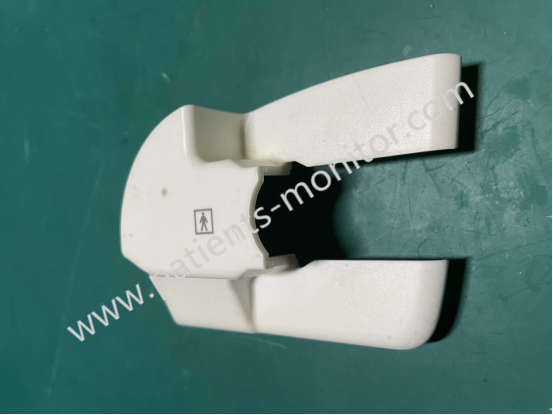

► Detailed Photos
► Removing

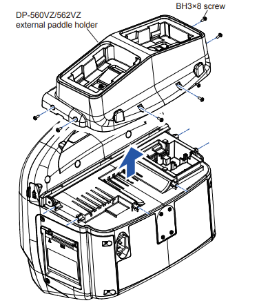

Removing the External Paddle Holder:
Remove the six BH3×8 screws which secure the DP-560VZ or DP-562VZ external paddle holder. (TEC-5601/5602/5621/5631 only).

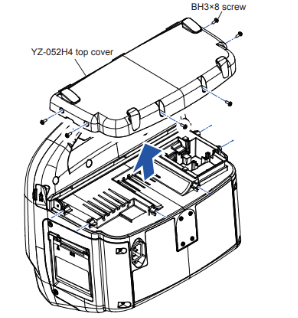

If the YZ-052H4 top cover is installed to use the disposable paddles, remove the six BH3×8 screws and remove the top cover.
External Paddle Holder
DP-560VZ EXTERNAL PADDLE HOLDER
| 1 | 6114-069677A | 8 | PADDLE LOCK SPRING, K-718 |
| 2 | 6114-035802A | 8 | PADDLE LOCK PACKING |
| 3 | 6114-927936 | 2 | ELECTRODE PLATE, NICKEL SILVER |
| 4 | 6114-905401 | 1 | PADDLE CUP OUTER |
| 5 | 6114-934588 | 1 | SPONGE, 26×6 |
| 6 | 6114-927945 | 2 | NUT PLATE, DP-831VK |
| 7 | UR-0484 | 1 | TEST LOAD BOARD |
DP-562VZ EXTERNAL PADDLE HOLDER, ERC
| 1 | 6114-069677A | 8 | PADDLE LOCK SPRING, K-718 |
| 2 | 6114-035802A | 8 | PADDLE LOCK PACKING |
| 3 | 6114-927936 | 2 | ELECTRODE PLATE, NICKEL SILVER |
| 4 | 6111-905394 | 1 | PADDLE CUP OUTER, ERC |
| 5 | 6114-934588 | 1 | SPONGE, 26×6 |
| 6 | 6114-927945 | 2 | NUT PLATE, DP-831VK |
| 7 | UR-0484 | 1 | TEST LOAD BOARD |
Thanks for your interest in Nihon Kohden TEC-5602 Defibrillator Paddle Connect Cover Small Used Medical Equipment Spare Parts, please feel free to contact me. Thank you for your time and wish you have a happy life.
