M2703-66420 Fetal Sensor Connector Board Assembly PHiliph FM20 FM30 Fetal Monitor Bus Master Board PN M2703-26420

PHiliphh FM20 FM30 Fetal Monitor Bus Master Board Fetal Sensor Connector Board Assembly PN M2703-26420 M2703-66420

►Brief Introduction

PHiliphh Avalon FM20 FM30 Antepartum Monitor for attentive care and reassurance before childbirth and multiples monitoring capability

PHiliphh Avalon FM20 FM30 covers patients from the onset of contractions through final stages of delivery with its full set of external and internal fetal parameters, such as ultrasound and direct fetal heart rate, Toco, and intrauterine pressure. It provides monitoring of maternal blood pressure, heart rate and the maternal ECG wave.

PHiliphh Avalon FM20 FM30 Antepartum offers fetal and maternal monitoring for obstetrical departments in offices, clinics, and hospitals. It integrates monitoring of maternal blood pressure and pulse rate with measurement of multiple fetal heart rates and uterine activity. Efficiently designed, it is compact and easy to use and has power and performance features, including high-quality ultrasound.

New high performance functionality in the PHiliphh Avalon FM20 FM30 includes the capability to monitor triplets with a sophisticated three-channel ultrasound tracing capability and coincidence detection between all heart rate channels.

► Feature

• Touch screen with intuitive user interface for ease of use.
• Large numeric displays ease readability.
• User-confi gured notes for standardization of patient data and documentation.
• Cross Channel Verifi cation, a PHiliphh safety feature, reduces the risk of confusing maternal and fetal heart rate signals. Cross Channel Verifi cation alerts when more than one heart rate channel processes the heart rate signal from the same source.
• Audible alert of fetal bradycardia and tachycardia for advance warning of changes in fetal condition.
• Built-in thermal paper recorder provides documentation of fetal traces and maternal parameters, together with user-defi ned annotations on an effi cient and easy to read documentation quality 15.2cm (6˝) paper strip. The recorder can also be set to run at high speed to record a 6 second maternal ECG strip in real time
• Compact design is easy to move if needed, and screen folds down for wall mounting

► Specification

Thank you for your time and interest in PHiliphh FM20 FM30 Fetal Monitor Bus Master Board Fetal Sensor Connector Board Assembly PN M2703-26420 M2703-66420.

Any inquiry will be highly appreciated and thanks for your support.

M2703-66420 Fetal Sensor Connector Board Assembly

M2703-26420 Fetal Sensor Connector Board Assembly

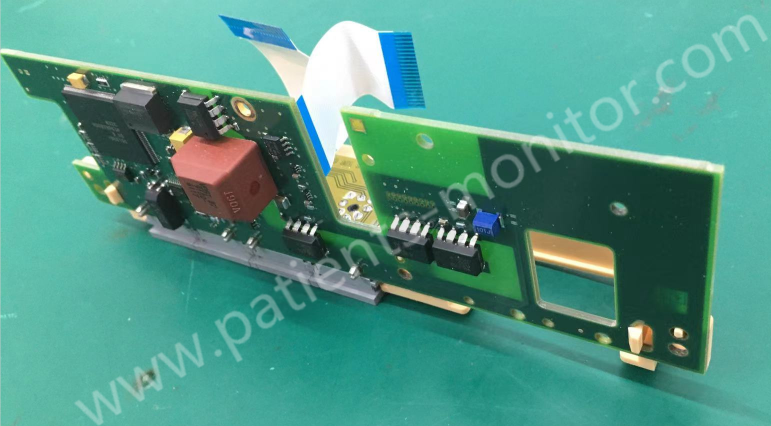

M2703-66420 Fetal Sensor Connector Board Assembly PHiliph FM20 FM30 Fetal Monitor Bus Master Board PN M2703-26420 Images
