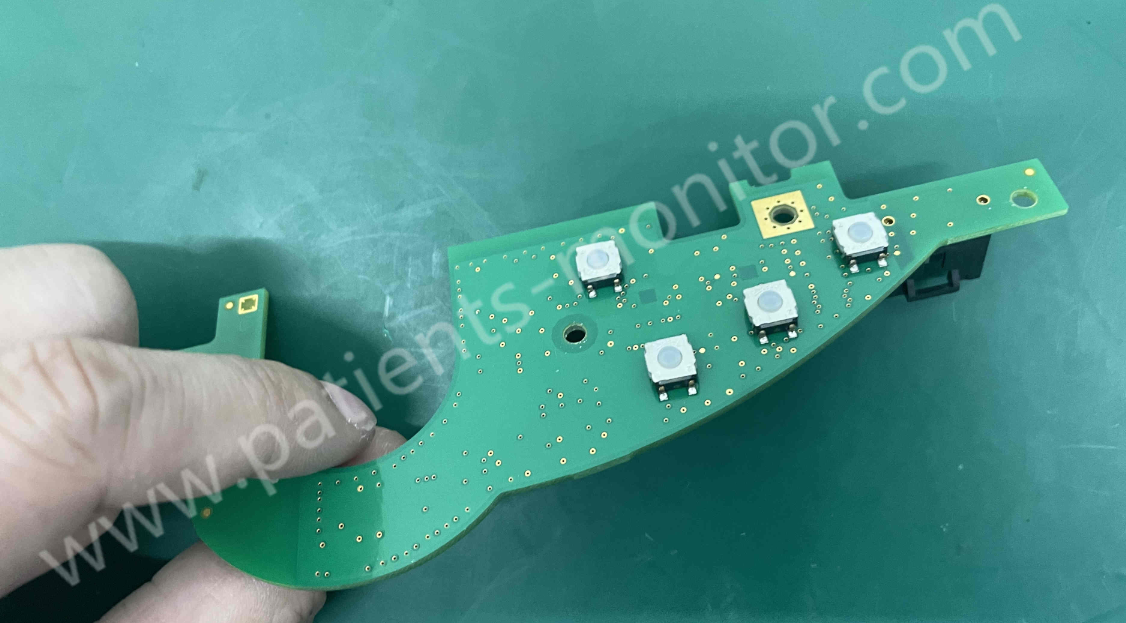

PHiliphh IntelliVue MP30 Patient Monitor HIF Navigation Point Board PN M8086-66462
► Brief Introduction
The integrated navigation point is the primary input device. Its dial can be rotated to enable navigation across the monitor screen. A tactile resistance at every step gives the user control over cursor movement.
To use the navigation point, rotate it left or right. With each click, the highlight jumps to the neighboring screen element. The element under the cursor is highlighted. When you reach the screen element you want, press the knob to select the element.
Option:
- Silence - acknowledges all active alarms by switching off audible alarm indicators and lamps. Exact behavior depends on permanent key configuration
- Alarms Off/Pause Alarms - pauses alarm indicators. Exact behavior depends on Pause Alarms permanent key configuration
- Main Screen - closes all open menus and windows and return to the main screen.
- Back - takes you back one step to the previous menu.
- Navigation Point knob
► Troubleshooting Guide
| Symptoms | Possible Causes of Failure | Failure Isolation and Remedy |
| Navigation Point attached directly to the monitor not functioning | Navigation Point not connected properly | Check cabling |
| Navigation Point defective | Replace Navigation Point |
| Speed Point attached to Remote Extension Box not functioning | Remote Extension Device is not connected to the monitor. | Check cabling and connections |
| Navigation Point not connected properly | Check cabling to SpeedPoint in the Remote Extension Device |
| Navigation Point defective | Replace Navigation Point |
| Remote Extension Device defective | Replace Remote Extension Device |
| Remote Device I/O board in the wrong slot | Check I/O Matrix in Installation Instructions |
| Remote Device I/O board defective | Replace I/O board |
| Navigation Point Knob Rotation, Joystick Control or Selection control not functioning | Navigation Point defective | Replace Navigation Point |
| INOP Message CHECK INPUT DEVICES is issued | Navigation Point or other input device defective | Perform a visual and functional check of all the monitor input devices. Replace input devices if necessary. |
► About Company
We mainly sell different kinds of medical equipment, accessories and repair parts including patient monitor, defibrillator machine, patient monitor printer, ECG machine, EKG machine, main board, batteries and so on. After many years of marketing and developing, we are quiet proficient in medical machines technology. Our products are increasingly popular and enjoy good reputation at home and abroad. Relying on superior products quality and reasonable price, our sales have been growing steadily with each passing year. We are a reliable manufacturer providing the best products and services for global customers. Satisfying all the customers' demands is our permanent pursuit.
All through the way we seek for providing perfect service to the satisfaction of customers.
If you want to explore more details of PHiliphh IntelliVue MP30 Patient Monitor HIF Navigation Point Board PN M8086-66462, please let us know.
Looking forward to receiving your early inquiry.
